Indel Webasto Isotherm Groupe de froid ASU "4901" Magnum refroidi par eau de mer pour 500L

CHF 3 253,70
TTC

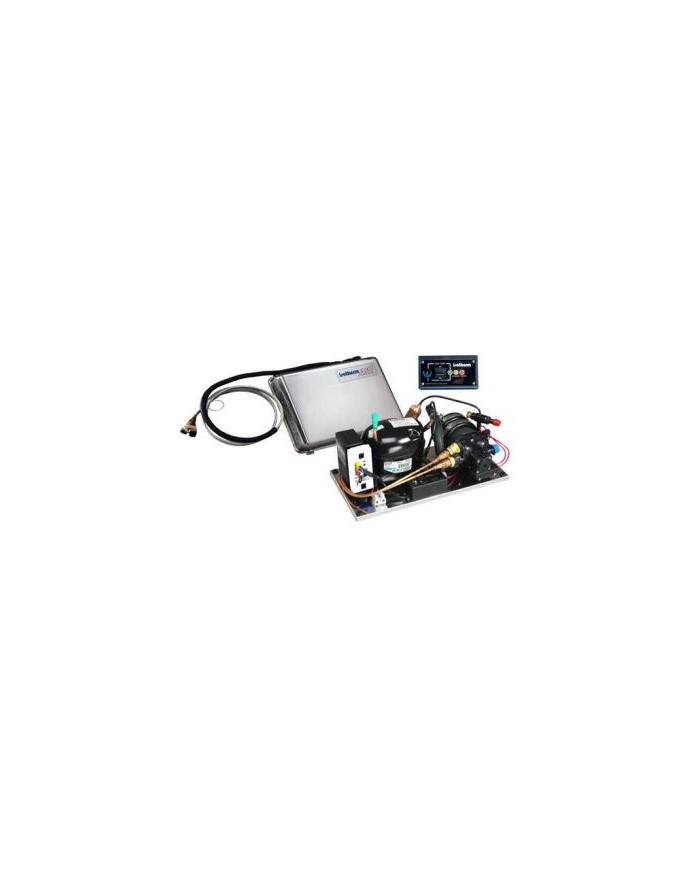

Isotherm 44901HE100000 : Groupe de froid ASU "4901", 12/24V, Magnum refroidi par eau de mer, disque d'accumulation, commande ASU, pour glacières jusqu'à 500 litres.

Ajouter pour Comparer Ajouter à la Wishlist
Numéro d'article: 44901HE100000
Pièces jointes: Catalogue Marine Indel Webasto (6.78MB)
Description
Le groupe frigorifique Isotherm 44901HE100000 avec ASU "4901" est une solution de réfrigération efficace avec refroidissement Magnum à eau de mer. L'appareil fonctionne à 12/24V et dispose d'un disque de stockage ainsi que d'une commande ASU, idéal pour les glacières jusqu'à 500 litres. Caractéristiques du produit : Groupe de froid avec ASU "4901" Fonctionnement à 12/24V Refroidissement par eau de mer Magnum Disque de stockage inclus Commande ASU pour un fonctionnement efficace Volume de la glacière : 500 litres

MODEL FUNCTION Gross Volume fridge (l) Gross Volume freezer (l) Weight (Kg) Width (W) (mm) Height (H) (mm) (A) Depth (D) (mm) (A) Cut-Out (mm) Flanges (B) Freezer rating (max temp. °C) Climatic class Compressor type Power supply (V) Power consumption (Wh/24h)
CR 36 FRIDGE 36 – 16 440 250 685(III) 442:252 3 side FM SS (VIII) – ST BD35F 12/24V 300
CR 36 INOX FRIDGE 36 – 17 455 255 715 457:257 4 side FM SS (VIII) – ST BD35F 12/24V 300
CR 40 CUBIC FRIDGE OR FREEZER 40 18 420 435 585(I) 422:437 NO (−12) ST BD35F 12/24V 186
CR 42 FRIDGE + FREEZER COMPARTMENT 37 5 14 380 525 455(I) 382:527 OPT (−6) ST BD1.4F-VSD 12/24V 300
CR 42 EL FRIDGE + FREEZER COMPARTMENT 37 5 14 380 525 455(II) 382:527 OPT (−6) ST BD1.4F-VSD 12/24V 285
CR 42 INOX CLEAN TOUCH FRIDGE + FREEZER COMPARTMENT 37 5 15 400 525 500 402:527 3 side FM SS(VII) (−6) ST BD1.4F-VSD 12/24V 285
CR 49 FRIDGE + FREEZER COMPARTMENT 44 5 17 380 525 452(I) 382:527 OPT (−6) ST BD35F 12/24V 278
CR 49 EL FRIDGE + FREEZER COMPARTMENT 44 5 17 380 525 452(II) 382:527 OPT (−6) ST BD35F 12/24V 265
CR 49 INOX CLEAN TOUCH FRIDGE + FREEZER COMPARTMENT 44 5 18 400 525 500 402:527 3 side FM SS(VII) (−6) ST BD35F 12/24V 265
CR 63 F FREEZER – 63 23 475 620 513(I) 477:622 OPT (−18) ST BD35F 12/24V 440
CR 63 F INOX FREEZER – 63 25 494 623 552 496:625 3 side FM SS* (VII) (−18) ST BD35F 12/24V 440
CR 65 FRIDGE + FREEZER COMPARTMENT 60 5 18 450 530 473(I) 452:532 OPT (−6) ST BD35F 12/24V 288
CR 65 EL FRIDGE + FREEZER COMPARTMENT 60 5 18 450 530 473(II) 452:532 OPT (−6) ST BD35F 12/24V 275
CR 65 INOX CLEAN TOUCH FRIDGE + FREEZER COMPARTMENT 60 5 19 470 530 520 472:532 3 side FM SS(VII) (−6) ST BD35F 12/24V 275
CR 65 F FREEZER – 65 25 525 610 540(I) 527:612 NO (−18) ST BD35F 12/24V 458
CR 65 F INOX FREEZER – 65 27 544 610 580 546:612 3 side FM SS(VII) (−18) ST BD35F 12/24V 458
CR 85 FRIDGE + FREEZER COMPARTMENT 77 8 22 475 627 505(I) 477:629 OPT (−6) ST BD35F 12/24V 386
CR 85 EL FRIDGE + FREEZER COMPARTMENT 77 8 22 475 627 505(II) 477:629 OPT (−6) ST BD35F 12/24V 368
CR 85 INOX CLEAN TOUCH FRIDGE + FREEZER COMPARTMENT 77 8 24 495 627 550 497:629 3 side FM SS(VII) (−6) ST BD35F 12/24V 368
CR 86 FRIDGE + FREEZER COMPARTMENT 76 10 22 380 850 495(I) 382:852 OPT (−6) ST BD1.4F-VSD 12/24V 499
CR 90 F FREEZER – 90 26 525 750 515(I) 527:752 OPT (−12) ST BD35F 12/24V 670
CR 90 F INOX CLEAN TOUCH FREEZER – 90 28 545 750 565 547:752 3 side FM SS(VII) (−12) ST BD35F 12/24V 626
CR 100 FRIDGE + FREEZER COMPARTMENT 94 6 23 486 745 455(I) 488:747 OPT (−6) ST BD35F 12/24V 400
CR 130 FRIDGE + FREEZER COMPARTMENT 122 8 27 525 750 510(I) 527:752 OPT (−6) ST BD35F 12/24V 438
CR 130 EL FRIDGE + FREEZER COMPARTMENT 122 8 27 525 750 510(II) 527:752 OPT (−6) ST BD35F 12/24V 418
CR 130 INOX CLEAN TOUCH FRIDGE + FREEZER COMPARTMENT 122 8 29 545 750 555 550:750 3 side FM SS(VII) (−6) ST BD35F 12/24V 418
CR 130 INOX CLEAN TOUCH SPECIALE FRIDGE + FREEZER COMPARTMENT 122 8 31 545 794 585 552:796 3 side FM SS(VII) (−6) ST BD35F 12/24V 418
CR 130 DRINK FRIDGE 130 – 27 527 750 520(I) 529:752 OPT – ST BD35F 12/24V 400
CR 130 DRINK INOX FRIDGE 130 – 32 544 750 560 546:752 3 side FM SS(VII) – ST BD35F 12/24V 400
CR 160 DRINK INOX FRIDGE 160 – 45 626 870 610 628:872 3 side FM SS(VII) – ST BD50F 12/24V 512
CR 195 COMBI FRIDGE & FREEZER 130 65 54 551 1347 565 553:1349 3 side FM(IX) (−18) ST 2 x BD35F 12/24V 840
CR 195 COMBI INOX FRIDGE & FREEZER 130 65 54 544 1347 565 546:1349 3 side FM SS(VII) (−18) ST 2 x BD35F 12/24V 840
CR 200 FRIDGE & FREEZER 150 50 47 731 880 620 732:882 3 side FM SS(VII) (−12) ST BD50F 12/24V 874
CR 200 INOX FRIDGE & FREEZER 150 50 48 731 880 620 732:882 3 side FM SS(VII) (−12) ST BD50F 12/24V 874
CR 220 COMBI INOX FRIDGE & FREEZER 130 90 61 544 1545 560 546:1547 3 side FM SS(VII) (−12) ST 2 x BD35F 12/24V 1070
CR 225 SILV ER FRIDGE & FREEZER 180 45 36 547 1444 486(IV) 549:1446 NO (−18) ST BD50F 12/24V 630
CR 260 COMBI INOX FRIDGE + FREEZER COMPARTMENT 244 16 64 544 1545 560 546:1547 3 side FM SS(VII) (−6) ST 2 x BD35F 12/24V 836
CR 280 SILV ER FRIDGE & FREEZER 235 45 41 547 1700 486(IV) 549:1702 NO (−18) ST BD50F 12/24V 680
CR 320 COMBI INOX FRIDGE 320 – 84 628 1790 610 630:1792 3 side FM SS(VII) – ST 2 x BD50F 12/24V 1042
CR 320 COMBI INOX FRIDGE & FREEZER 250 70 87 628 1790 610 630:1792 3 side FM SS(VII) (−6) ST BD50F + BD80F 12/24V 1147
CR 320 COMBI INOX FRIDGE & FREEZER 160 160 86 628 1790 610 630:1792 3 side FM SS(VII) (−12) ST BD50F + BD80F 12/24V 1609
FL 115 EL FRIDGE + FREEZER COMPARTMENT 83 32 29 525 797 495(II) 527:799 NO (−6) ST BD35F 12/24V 257
DR 16 FRIDGE OR FREEZER 16 13 380 250 540 382:252 OPT (−6) ST BD1.4F-FSD 12/24V 252
DR 30 FRIDGE 30 – 17 440 260 700 442:262 OPT – T BD1.4F-FSD 12/24V 244
DR 42 INOX CLEAN TOUCH FRIDGE + FREEZER COMPARTMENT 34 8 18 399 519 511 401:521 3 side FM SS(VII) (−6) ST BD1.4F-VSD 12/24V 333
DR 49 INOX CLEAN TOUCH FRIDGE + FREEZER COMPARTMENT 41 8 18 399 519 497 401:521 3 side FM SS(VII) (−6) ST BD1.4F-VSD 12/24V 305
DR 49 CUSTOM (der. INOX CLEAN TOUCH) 41 8 17 379 519 494 381:521 NO (−6) ST BD1.4F-VSD 12/24V 305
DR 55 FROST FREE INOX FREEZER – 55 27 469 525 555 471:527 3 side FM SS(VII) (−12) N BD35F 12/24V 741
DR 55 FROST FREE CUSTOM FREEZER – 55 25 457 525 560 459:527 NO (−12) N BD35F 12/24V 741
DR 65 INOX CLEAN TOUCH FRIDGE + FREEZER COMPARTMENT 54 11 21 470 525 520 474:529 3 side FM SS(VII) (−6) ST BD1.4F-VSD 12/24V 324
DR 65 CUSTOM (der. INOX CLEAN TOUCH) 54 11 19 452 525 525 456:529 NO (−6) ST BD1.4F-VSD 12/24V 324
DR 65 FROST FREE INOX FRIDGE 65 – 26 469 525 555 471:527 3 side FM SS(VII) – ST BD35F 12/24V 310
DR 65 INOX FROST FREE DRINK FRIDGE 65 – 27 469 525 555 471:527 4 side FM SS(I) – ST BD35F 12/24V 310
DR 65 FROST FREE CUSTOM FRIDGE 65 – 25 457 525 560 459:527 NO – ST BD35F 12/24V 310
DR 70 INOX CLEAN TOUCH FRIDGE 70 – 31 626 444 724 631:448 3 side FM SS(VII) – T BD35F 12/24V 295
DR 70 CUSTOM FRIDGE 70 – 29 611 444 726 615:448 NO – T BD35F 12/24V 295
DR 70 INOX CLEAN TOUCH FREEZER – 70 32 627 444 724 631:448 3 side FM SS(VII) (−12) T BD50F 12/24V 800
DR 70 CUSTOM FREEZER – 70 30 611 444 726 615:448 NO (−12) T BD50F 12/24V 800
DR 70 INOX CLEAN TOUCH ver. 230V 50Hz FREEZER + ICEMAKER – 60 38 627 444 786 631:448 3 side FM SS(VII) (−12) T TLES5.7FT.3 230V 1055
DR 70 INOX CLEAN TOUCH ver. 115V 60Hz FREEZER + ICEMAKER – 60 38 627 444 786 631:448 3 side FM SS(VII) (−12) T TLS4.5F 115V 1380
DR 70 CUSTOM ver. 230V 50Hz FREEZER + ICEMAKER – 60 36 611 444 788 615:448 NO (−12) T TLES5.7FT.3 230V 1055
DR 70 CUSTOM ver. 115V 60Hz FREEZER + ICEMAKER – 60 36 611 444 788 615:448 NO (−12) T TLS4.5F 115V 1380
DR 85 INOX CLEAN TOUCH FRIDGE + FREEZER COMPARTMENT 88 13 23 494 619 544 N/A 3 side FM SS(VII) (−12) T BDN45F 12/24V 300
DR 85 CUSTOM FRIDGE + FREEZER COMPARTMENT 88 13 N/A N/A N/A N/A – NO N/A N/A BDN45F 12/24V 300
DR 100 INOX CLEAN TOUCH FRIDGE 100 – 32 546 501 778 550:505 3 side FM SS(I) – T BD35F 12/24V 252
DR 100 CUSTOM FRIDGE 100 – 30 529 501 779 533:505 3 side FM SS(VII) – T BD35F 12/24V 252
DR 100 INOX CLEAN TOUCH FREEZER – 100 33 546 501 778 550:505 3 side FM SS(VII) (−12) T BD50F 12/24V 503
DR 100 CUSTOM FREEZER – 100 31 529 501 779 533:505 3 side FM SS(VII) (−12) T BD50F 12/24V 503
DR 100 INOX CLEAN TOUCH ver. 230V 50Hz FREEZER + ICEMAKER – 90 39 546 501 840 550:505 3 side FM SS(VII) (−12) T TLES5.7FT.3 230V 790
DR 100 INOX CLEAN TOUCH ver. 115V 60Hz FREEZER + ICEMAKER – 90 39 546 501 840 550:505 3 side FM SS(VII) (−12) T TLS4.5F 115V 1031
DR 100 CUSTOM ver. 230V 50Hz FREEZER + ICEMAKER – 90 39 529 501 841 533:505 3 side FM SS(VII) (−12) T TLES5.7FT.3 230V 790
DR 100 CUSTOM ver. 115V 60Hz FREEZER + ICEMAKER – 90 39 529 501 841 533:505 3 side FM SS(VII) (−12) T TLS4.5F 115V 1031
DR 105 INOX FRIDGE 105 – 28 515 515 575+170* 519:517 NO – ST BD35F 12/24V 480
DR 130 INOX CLEAN TOUCH FRIDGE + FREEZER COMPARTMENT 124 14 27 544 744 551 N/A 3 side FM SS(VII) N/A N/A BDN45F 12/24V N/A
DR 130 CUSTOM FRIDGE + FREEZER COMPARTMENT 124 14 N/A N/A N/A N/A N/A NO N/A N/A BDN45F 12/24V N/A
DR 160 INOX FRIDGE 160 – 43 627 865 610 632:870 3 side FM SS(VII) – ST BD50F 12/24V 530
DR 160 CUSTOM FRIDGE 160 – 41 613 868 622 617:872 NO – ST BD50F 12/24V 530
DR 160 INOX FREEZER – 160 45 627 865 610 632:870 3 side FM SS(VII) (−12) ST BD80F 12/24V 1097
DR 160 CUSTOM FREEZER – 160 43 613 868 622 617:872 NO (−12) ST BD80F 12/24V 1097
DR 160 INOX FRIDGE & FREEZER 90 70 46 627 865 610 632:870 3 side FM SS(VII) (−6) ST BD80F 12/24V 635
DR 160 CUSTOM FRIDGE & FREEZER 90 70 44 613 868 622 617:872 NO (−6) ST BD80F 12/24V 635
DR 190 INOX FRIDGE 190 – 56 900 800 545 905:805 3 side FM SS(VII) – ST BD50F 12/24V 700
DR 190 CUSTOM FRIDGE 190 – 53 898 798 551 902:802 NO – ST BD50F 12/24V 700
BI 16 FRIDGE 16 - 12 384 557 240 384:242 NO – ST BD1.4F-FSD 12/24V 155
BI 29 DUAL FRIDGE OR FREEZER 29 12 342 326(I) 655 344:505 NO (−6) T BD1.4F-AM 12/24V 175
BI 29 DUAL CUSTOM FRIDGE OR FREEZER 29 11 342 326(VI) 655 344:505 NO (−6) T BD1.4F-AM 12/24V 175
BI 30 FRIDGE 30 – 16 449 724 251 453:255 NO – T BD1.4F-FSD 12/24V 254
BI 36 FRIDGE 36 – 14 438 676(III) 240 440:242 NO – T BD1.4F-AM 12/24V 316
BI 40 FRIDGE 40 – 15 395 400(V) 560 405:405 NO – ST BD35F 12/24V 270
BI 41 DUAL FRIDGE OR FREEZER 41 14 342 612(VI) 500 502:344 NO (−6) ST BD1.4F-AM 12/24V 222
BI 53 F FREEZER – 53 20 645 630 425 649:429 NO (−18) ST BD50F 12/24V 260
BI 75 FRIDGE 75 – 23 645 630 425 649:429 NO – ST BD35F 12/24V 340
BI 92 DUAL FRIDGE OR FREEZER 92 31 801 615 480 805:484 NO (−18) ST BD50F 12/24V 360
BI 172 DUAL FRIDGE & FREEZER 130 (172 if only fridge) 38 38 980 840 493 984:497 NO (−12) ST BD50F 12/24V 603
A. Door dimensions to be added
  • (I) add 40 mm for door depth
  • (II) add 50 mm for door depth
  • (III) add 35 mm for door depth
  • (IV) add 70 mm for door depth
  • (V) add 25 mm for door dimension
  • (VI) add 15 mm for door dimension
B. Width of flanges
  • (VII) 20 mm
  • (VIII) 30 mm
  • (IX) 38 mm sides width & 28 mm top height
  • (X) 20 mm sides & 50 mm top height
Notes
  1. Refrigerator manufacturing tolerances –2/+4 mm
  2. Dimensions include product’s feet
  3. Isotherm Power Pack available for AC/DC application on all 12/24 V products
  4. Power consumption (Wh/24 h) at 12 V & +25 °C per ISO 15502:2005 & EN 153:2006
  5. Most models can be retrofitted with Smart Energy Control or Intelligent Temperature Control (up to 50 % battery savings)
  6. EN 60335-1: furniture walls ≥ 20 mm from sides & ≥ 50 mm from top (see installation manual)
  7. Specifications subject to change without notice
  8. * Product sold already with remote compressor
