Indel Webasto Isotherm 2507 Magnum Réfrigérateur/congélateur 12/24V

CHF 1 945,00
TTC

Refroidi à l'eau

Ajouter pour Comparer Ajouter à la Wishlist
Numéro d'article: U400X133P12411AA
Pièces jointes: Catalogue Marine Indel Webasto (6.78MB)
Description

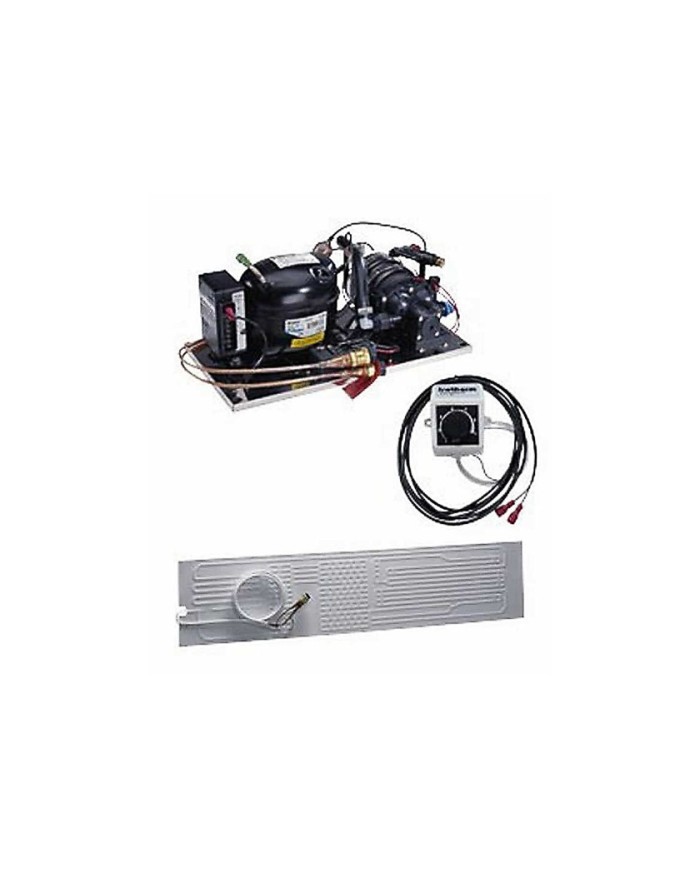

Unité de Réfrigération Isotherm 2507 Magnum - U400X133P12411AA

Le système Isotherm 2507 Magnum est une solution de réfrigération marine hautement performante équipée d’un système de refroidissement à l’eau de mer Magnum. Idéal pour les réfrigérateurs ou congélateurs jusqu’à 400 litres (réfrigération) et 133 litres (congélation), ce modèle assure une stabilité thermique remarquable, même dans les conditions environnementales les plus exigeantes.

Caractéristiques principales :

  • Refroidissement par eau de mer avec technologie Magnum
  • Volume max. : 400 L réfrigération / 133 L congélation
  • Évaporateur : Large-Flat (surface de contact étendue pour une meilleure diffusion du froid)
  • Fonctionnement en 12/24V
  • Ancien numéro d'article : 42507DB100000

Avantages :

  • Performance optimale dans des environnements tropicaux
  • Idéal pour les espaces fermés sans ventilation efficace
  • Économie d’énergie grâce à la dissipation thermique efficace par eau
  • Installation marine fiable et durable


MODEL FUNCTION Gross Volume fridge (l) Gross Volume freezer (l) Weight (Kg) Width (W) (mm) Height (H) (mm) (A) Depth (D) (mm) (A) Cut-Out (mm) Flanges (B) Freezer rating (max temp. °C) Climatic class Compressor type Power supply (V) Power consumption (Wh/24h)
CR 36 FRIDGE 36 – 16 440 250 685(III) 442:252 3 side FM SS (VIII) – ST BD35F 12/24V 300
CR 36 INOX FRIDGE 36 – 17 455 255 715 457:257 4 side FM SS (VIII) – ST BD35F 12/24V 300
CR 40 CUBIC FRIDGE OR FREEZER 40 18 420 435 585(I) 422:437 NO (−12) ST BD35F 12/24V 186
CR 42 FRIDGE + FREEZER COMPARTMENT 37 5 14 380 525 455(I) 382:527 OPT (−6) ST BD1.4F-VSD 12/24V 300
CR 42 EL FRIDGE + FREEZER COMPARTMENT 37 5 14 380 525 455(II) 382:527 OPT (−6) ST BD1.4F-VSD 12/24V 285
CR 42 INOX CLEAN TOUCH FRIDGE + FREEZER COMPARTMENT 37 5 15 400 525 500 402:527 3 side FM SS(VII) (−6) ST BD1.4F-VSD 12/24V 285
CR 49 FRIDGE + FREEZER COMPARTMENT 44 5 17 380 525 452(I) 382:527 OPT (−6) ST BD35F 12/24V 278
CR 49 EL FRIDGE + FREEZER COMPARTMENT 44 5 17 380 525 452(II) 382:527 OPT (−6) ST BD35F 12/24V 265
CR 49 INOX CLEAN TOUCH FRIDGE + FREEZER COMPARTMENT 44 5 18 400 525 500 402:527 3 side FM SS(VII) (−6) ST BD35F 12/24V 265
CR 63 F FREEZER – 63 23 475 620 513(I) 477:622 OPT (−18) ST BD35F 12/24V 440
CR 63 F INOX FREEZER – 63 25 494 623 552 496:625 3 side FM SS* (VII) (−18) ST BD35F 12/24V 440
CR 65 FRIDGE + FREEZER COMPARTMENT 60 5 18 450 530 473(I) 452:532 OPT (−6) ST BD35F 12/24V 288
CR 65 EL FRIDGE + FREEZER COMPARTMENT 60 5 18 450 530 473(II) 452:532 OPT (−6) ST BD35F 12/24V 275
CR 65 INOX CLEAN TOUCH FRIDGE + FREEZER COMPARTMENT 60 5 19 470 530 520 472:532 3 side FM SS(VII) (−6) ST BD35F 12/24V 275
CR 65 F FREEZER – 65 25 525 610 540(I) 527:612 NO (−18) ST BD35F 12/24V 458
CR 65 F INOX FREEZER – 65 27 544 610 580 546:612 3 side FM SS(VII) (−18) ST BD35F 12/24V 458
CR 85 FRIDGE + FREEZER COMPARTMENT 77 8 22 475 627 505(I) 477:629 OPT (−6) ST BD35F 12/24V 386
CR 85 EL FRIDGE + FREEZER COMPARTMENT 77 8 22 475 627 505(II) 477:629 OPT (−6) ST BD35F 12/24V 368
CR 85 INOX CLEAN TOUCH FRIDGE + FREEZER COMPARTMENT 77 8 24 495 627 550 497:629 3 side FM SS(VII) (−6) ST BD35F 12/24V 368
CR 86 FRIDGE + FREEZER COMPARTMENT 76 10 22 380 850 495(I) 382:852 OPT (−6) ST BD1.4F-VSD 12/24V 499
CR 90 F FREEZER – 90 26 525 750 515(I) 527:752 OPT (−12) ST BD35F 12/24V 670
CR 90 F INOX CLEAN TOUCH FREEZER – 90 28 545 750 565 547:752 3 side FM SS(VII) (−12) ST BD35F 12/24V 626
CR 100 FRIDGE + FREEZER COMPARTMENT 94 6 23 486 745 455(I) 488:747 OPT (−6) ST BD35F 12/24V 400
CR 130 FRIDGE + FREEZER COMPARTMENT 122 8 27 525 750 510(I) 527:752 OPT (−6) ST BD35F 12/24V 438
CR 130 EL FRIDGE + FREEZER COMPARTMENT 122 8 27 525 750 510(II) 527:752 OPT (−6) ST BD35F 12/24V 418
CR 130 INOX CLEAN TOUCH FRIDGE + FREEZER COMPARTMENT 122 8 29 545 750 555 550:750 3 side FM SS(VII) (−6) ST BD35F 12/24V 418
CR 130 INOX CLEAN TOUCH SPECIALE FRIDGE + FREEZER COMPARTMENT 122 8 31 545 794 585 552:796 3 side FM SS(VII) (−6) ST BD35F 12/24V 418
CR 130 DRINK FRIDGE 130 – 27 527 750 520(I) 529:752 OPT – ST BD35F 12/24V 400
CR 130 DRINK INOX FRIDGE 130 – 32 544 750 560 546:752 3 side FM SS(VII) – ST BD35F 12/24V 400
CR 160 DRINK INOX FRIDGE 160 – 45 626 870 610 628:872 3 side FM SS(VII) – ST BD50F 12/24V 512
CR 195 COMBI FRIDGE & FREEZER 130 65 54 551 1347 565 553:1349 3 side FM(IX) (−18) ST 2 x BD35F 12/24V 840
CR 195 COMBI INOX FRIDGE & FREEZER 130 65 54 544 1347 565 546:1349 3 side FM SS(VII) (−18) ST 2 x BD35F 12/24V 840
CR 200 FRIDGE & FREEZER 150 50 47 731 880 620 732:882 3 side FM SS(VII) (−12) ST BD50F 12/24V 874
CR 200 INOX FRIDGE & FREEZER 150 50 48 731 880 620 732:882 3 side FM SS(VII) (−12) ST BD50F 12/24V 874
CR 220 COMBI INOX FRIDGE & FREEZER 130 90 61 544 1545 560 546:1547 3 side FM SS(VII) (−12) ST 2 x BD35F 12/24V 1070
CR 225 SILV ER FRIDGE & FREEZER 180 45 36 547 1444 486(IV) 549:1446 NO (−18) ST BD50F 12/24V 630
CR 260 COMBI INOX FRIDGE + FREEZER COMPARTMENT 244 16 64 544 1545 560 546:1547 3 side FM SS(VII) (−6) ST 2 x BD35F 12/24V 836
CR 280 SILV ER FRIDGE & FREEZER 235 45 41 547 1700 486(IV) 549:1702 NO (−18) ST BD50F 12/24V 680
CR 320 COMBI INOX FRIDGE 320 – 84 628 1790 610 630:1792 3 side FM SS(VII) – ST 2 x BD50F 12/24V 1042
CR 320 COMBI INOX FRIDGE & FREEZER 250 70 87 628 1790 610 630:1792 3 side FM SS(VII) (−6) ST BD50F + BD80F 12/24V 1147
CR 320 COMBI INOX FRIDGE & FREEZER 160 160 86 628 1790 610 630:1792 3 side FM SS(VII) (−12) ST BD50F + BD80F 12/24V 1609
FL 115 EL FRIDGE + FREEZER COMPARTMENT 83 32 29 525 797 495(II) 527:799 NO (−6) ST BD35F 12/24V 257
DR 16 FRIDGE OR FREEZER 16 13 380 250 540 382:252 OPT (−6) ST BD1.4F-FSD 12/24V 252
DR 30 FRIDGE 30 – 17 440 260 700 442:262 OPT – T BD1.4F-FSD 12/24V 244
DR 42 INOX CLEAN TOUCH FRIDGE + FREEZER COMPARTMENT 34 8 18 399 519 511 401:521 3 side FM SS(VII) (−6) ST BD1.4F-VSD 12/24V 333
DR 49 INOX CLEAN TOUCH FRIDGE + FREEZER COMPARTMENT 41 8 18 399 519 497 401:521 3 side FM SS(VII) (−6) ST BD1.4F-VSD 12/24V 305
DR 49 CUSTOM (der. INOX CLEAN TOUCH) 41 8 17 379 519 494 381:521 NO (−6) ST BD1.4F-VSD 12/24V 305
DR 55 FROST FREE INOX FREEZER – 55 27 469 525 555 471:527 3 side FM SS(VII) (−12) N BD35F 12/24V 741
DR 55 FROST FREE CUSTOM FREEZER – 55 25 457 525 560 459:527 NO (−12) N BD35F 12/24V 741
DR 65 INOX CLEAN TOUCH FRIDGE + FREEZER COMPARTMENT 54 11 21 470 525 520 474:529 3 side FM SS(VII) (−6) ST BD1.4F-VSD 12/24V 324
DR 65 CUSTOM (der. INOX CLEAN TOUCH) 54 11 19 452 525 525 456:529 NO (−6) ST BD1.4F-VSD 12/24V 324
DR 65 FROST FREE INOX FRIDGE 65 – 26 469 525 555 471:527 3 side FM SS(VII) – ST BD35F 12/24V 310
DR 65 INOX FROST FREE DRINK FRIDGE 65 – 27 469 525 555 471:527 4 side FM SS(I) – ST BD35F 12/24V 310
DR 65 FROST FREE CUSTOM FRIDGE 65 – 25 457 525 560 459:527 NO – ST BD35F 12/24V 310
DR 70 INOX CLEAN TOUCH FRIDGE 70 – 31 626 444 724 631:448 3 side FM SS(VII) – T BD35F 12/24V 295
DR 70 CUSTOM FRIDGE 70 – 29 611 444 726 615:448 NO – T BD35F 12/24V 295
DR 70 INOX CLEAN TOUCH FREEZER – 70 32 627 444 724 631:448 3 side FM SS(VII) (−12) T BD50F 12/24V 800
DR 70 CUSTOM FREEZER – 70 30 611 444 726 615:448 NO (−12) T BD50F 12/24V 800
DR 70 INOX CLEAN TOUCH ver. 230V 50Hz FREEZER + ICEMAKER – 60 38 627 444 786 631:448 3 side FM SS(VII) (−12) T TLES5.7FT.3 230V 1055
DR 70 INOX CLEAN TOUCH ver. 115V 60Hz FREEZER + ICEMAKER – 60 38 627 444 786 631:448 3 side FM SS(VII) (−12) T TLS4.5F 115V 1380
DR 70 CUSTOM ver. 230V 50Hz FREEZER + ICEMAKER – 60 36 611 444 788 615:448 NO (−12) T TLES5.7FT.3 230V 1055
DR 70 CUSTOM ver. 115V 60Hz FREEZER + ICEMAKER – 60 36 611 444 788 615:448 NO (−12) T TLS4.5F 115V 1380
DR 85 INOX CLEAN TOUCH FRIDGE + FREEZER COMPARTMENT 88 13 23 494 619 544 N/A 3 side FM SS(VII) (−12) T BDN45F 12/24V 300
DR 85 CUSTOM FRIDGE + FREEZER COMPARTMENT 88 13 N/A N/A N/A N/A – NO N/A N/A BDN45F 12/24V 300
DR 100 INOX CLEAN TOUCH FRIDGE 100 – 32 546 501 778 550:505 3 side FM SS(I) – T BD35F 12/24V 252
DR 100 CUSTOM FRIDGE 100 – 30 529 501 779 533:505 3 side FM SS(VII) – T BD35F 12/24V 252
DR 100 INOX CLEAN TOUCH FREEZER – 100 33 546 501 778 550:505 3 side FM SS(VII) (−12) T BD50F 12/24V 503
DR 100 CUSTOM FREEZER – 100 31 529 501 779 533:505 3 side FM SS(VII) (−12) T BD50F 12/24V 503
DR 100 INOX CLEAN TOUCH ver. 230V 50Hz FREEZER + ICEMAKER – 90 39 546 501 840 550:505 3 side FM SS(VII) (−12) T TLES5.7FT.3 230V 790
DR 100 INOX CLEAN TOUCH ver. 115V 60Hz FREEZER + ICEMAKER – 90 39 546 501 840 550:505 3 side FM SS(VII) (−12) T TLS4.5F 115V 1031
DR 100 CUSTOM ver. 230V 50Hz FREEZER + ICEMAKER – 90 39 529 501 841 533:505 3 side FM SS(VII) (−12) T TLES5.7FT.3 230V 790
DR 100 CUSTOM ver. 115V 60Hz FREEZER + ICEMAKER – 90 39 529 501 841 533:505 3 side FM SS(VII) (−12) T TLS4.5F 115V 1031
DR 105 INOX FRIDGE 105 – 28 515 515 575+170* 519:517 NO – ST BD35F 12/24V 480
DR 130 INOX CLEAN TOUCH FRIDGE + FREEZER COMPARTMENT 124 14 27 544 744 551 N/A 3 side FM SS(VII) N/A N/A BDN45F 12/24V N/A
DR 130 CUSTOM FRIDGE + FREEZER COMPARTMENT 124 14 N/A N/A N/A N/A N/A NO N/A N/A BDN45F 12/24V N/A
DR 160 INOX FRIDGE 160 – 43 627 865 610 632:870 3 side FM SS(VII) – ST BD50F 12/24V 530
DR 160 CUSTOM FRIDGE 160 – 41 613 868 622 617:872 NO – ST BD50F 12/24V 530
DR 160 INOX FREEZER – 160 45 627 865 610 632:870 3 side FM SS(VII) (−12) ST BD80F 12/24V 1097
DR 160 CUSTOM FREEZER – 160 43 613 868 622 617:872 NO (−12) ST BD80F 12/24V 1097
DR 160 INOX FRIDGE & FREEZER 90 70 46 627 865 610 632:870 3 side FM SS(VII) (−6) ST BD80F 12/24V 635
DR 160 CUSTOM FRIDGE & FREEZER 90 70 44 613 868 622 617:872 NO (−6) ST BD80F 12/24V 635
DR 190 INOX FRIDGE 190 – 56 900 800 545 905:805 3 side FM SS(VII) – ST BD50F 12/24V 700
DR 190 CUSTOM FRIDGE 190 – 53 898 798 551 902:802 NO – ST BD50F 12/24V 700
BI 16 FRIDGE 16 - 12 384 557 240 384:242 NO – ST BD1.4F-FSD 12/24V 155
BI 29 DUAL FRIDGE OR FREEZER 29 12 342 326(I) 655 344:505 NO (−6) T BD1.4F-AM 12/24V 175
BI 29 DUAL CUSTOM FRIDGE OR FREEZER 29 11 342 326(VI) 655 344:505 NO (−6) T BD1.4F-AM 12/24V 175
BI 30 FRIDGE 30 – 16 449 724 251 453:255 NO – T BD1.4F-FSD 12/24V 254
BI 36 FRIDGE 36 – 14 438 676(III) 240 440:242 NO – T BD1.4F-AM 12/24V 316
BI 40 FRIDGE 40 – 15 395 400(V) 560 405:405 NO – ST BD35F 12/24V 270
BI 41 DUAL FRIDGE OR FREEZER 41 14 342 612(VI) 500 502:344 NO (−6) ST BD1.4F-AM 12/24V 222
BI 53 F FREEZER – 53 20 645 630 425 649:429 NO (−18) ST BD50F 12/24V 260
BI 75 FRIDGE 75 – 23 645 630 425 649:429 NO – ST BD35F 12/24V 340
BI 92 DUAL FRIDGE OR FREEZER 92 31 801 615 480 805:484 NO (−18) ST BD50F 12/24V 360
BI 172 DUAL FRIDGE & FREEZER 130 (172 if only fridge) 38 38 980 840 493 984:497 NO (−12) ST BD50F 12/24V 603
A. Door dimensions to be added
  • (I) add 40 mm for door depth
  • (II) add 50 mm for door depth
  • (III) add 35 mm for door depth
  • (IV) add 70 mm for door depth
  • (V) add 25 mm for door dimension
  • (VI) add 15 mm for door dimension
B. Width of flanges
  • (VII) 20 mm
  • (VIII) 30 mm
  • (IX) 38 mm sides width & 28 mm top height
  • (X) 20 mm sides & 50 mm top height
Notes
  1. Refrigerator manufacturing tolerances –2/+4 mm
  2. Dimensions include product’s feet
  3. Isotherm Power Pack available for AC/DC application on all 12/24 V products
  4. Power consumption (Wh/24 h) at 12 V & +25 °C per ISO 15502:2005 & EN 153:2006
  5. Most models can be retrofitted with Smart Energy Control or Intelligent Temperature Control (up to 50 % battery savings)
  6. EN 60335-1: furniture walls ≥ 20 mm from sides & ≥ 50 mm from top (see installation manual)
  7. Specifications subject to change without notice
  8. * Product sold already with remote compressor
