Indel Marine Isotherm Schubladenkühlschrank Inox 160L/SP Nur Kühlschrank 12/24V mit Verlängerungsrohr 2m + 2m

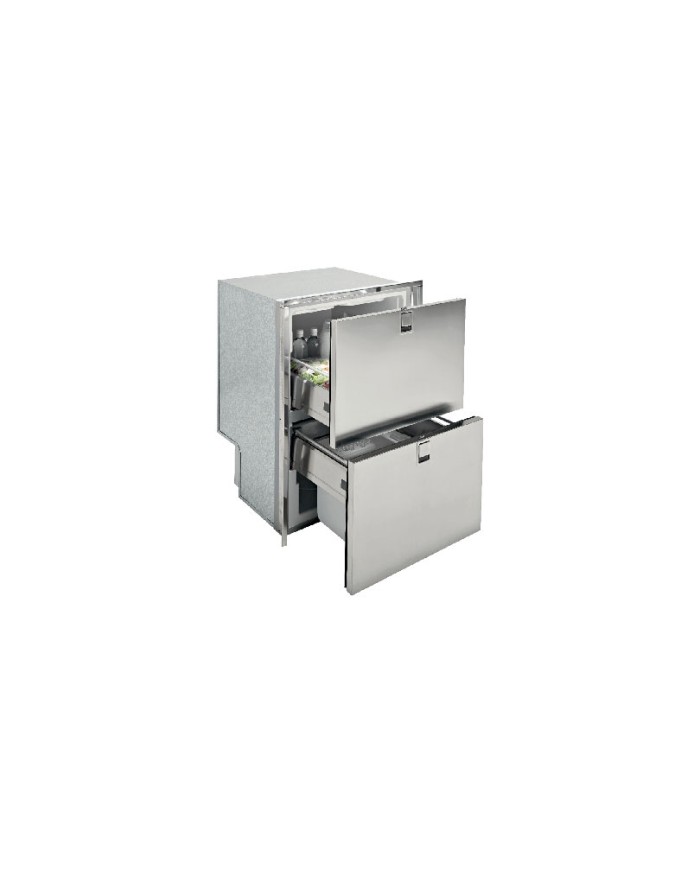

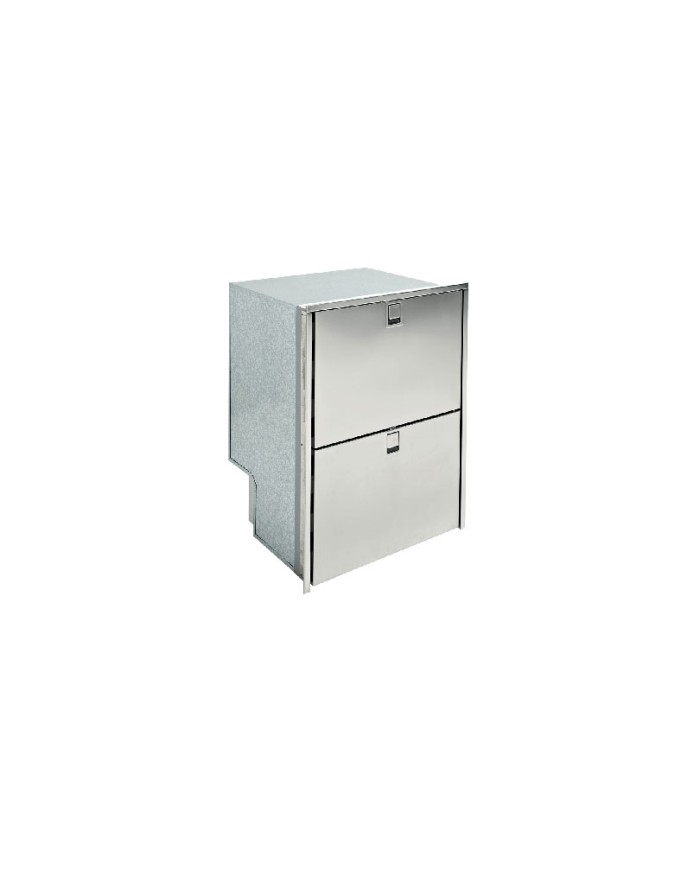

Isotherm 3160CA1C00096 - Schubladenkühlschrank Inox 160L/SP Nur Kühlschrank 12/24V mit Verlängerungsrohr 2m + 2m Der Isotherm 3160CA1C00096 ist ein Schubladenkühlschrank aus Edelstahl mit einem Fassungsvermögen von 160 Litern. Dieses Modell arbeitet mit 12/24V und ist ausschließlich als Kühlschrank (SP Only) konzipiert. Er verfügt über ein Verlängerungsrohr von 2 Metern + 2 Metern für erweiterte Funktionalität. Produktspezifikationen: Modell: 3160CA1C00096 Typ: Schubladenkühlschrank Inox Kapazität: 160 Liter Stromversorgung: 12/24V Funktionalität: Nur Kühlschrank (SP Only) Zusatz: Verlängerungsrohr von 2 Metern + 2 Metern Hauptmerkmale: Großzügiges Fassungsvermögen von 160 Litern Betrieb mit 12V und 24V Stromquellen Speziell als Kühlschrank konzipiert (SP Only) Inklusive Verlängerungsrohr von 2 Metern + 2 Metern für zusätzliche Funktionalität Anwendungshinweise: Bitte beachten Sie die Bedienungsanleitung für Installationsanweisungen und optimale Nutzung. Stellen Sie sicher, dass das Gerät korrekt eingerichtet ist und folgen Sie den empfohlenen Anweisungen für eine effiziente Leistung.

MODEL	FUNCTION	Gross Volume fridge (l)	Gross Volume freezer (l)	Weight (Kg)	Width (W) (mm)	Height (H) (mm) (A)	Depth (D) (mm) (A)	Cut-Out (mm)	Flanges (B)	Freezer rating (max temp. °C)	Climatic class	Compressor type	Power supply (V)	Power consumption (Wh/24h)
A. Door dimensions to be added		(I) add 40 mm for door depth (II) add 50 mm for door depth (III) add 35 mm for door depth (IV) add 70 mm for door depth (V) add 25 mm for door dimension (VI) add 15 mm for door dimension
B. Width of flanges		(VII) 20 mm (VIII) 30 mm (IX) 38 mm sides width & 28 mm top height (X) 20 mm sides & 50 mm top height
Notes		Refrigerator manufacturing tolerances –2/+4 mm Dimensions include product’s feet Isotherm Power Pack available for AC/DC application on all 12/24 V products Power consumption (Wh/24 h) at 12 V & +25 °C per ISO 15502:2005 & EN 153:2006 Most models can be retrofitted with Smart Energy Control or Intelligent Temperature Control (up to 50 % battery savings) EN 60335-1: furniture walls ≥ 20 mm from sides & ≥ 50 mm from top (see installation manual) Specifications subject to change without notice * Product sold already with remote compressor
CR 36	FRIDGE	36	–	16	440	250	685(III)	442:252	3 side FM SS (VIII)	–	ST	BD35F	12/24V	300
CR 36 INOX	FRIDGE	36	–	17	455	255	715	457:257	4 side FM SS (VIII)	–	ST	BD35F	12/24V	300
CR 40 CUBIC	FRIDGE OR FREEZER	40		18	420	435	585(I)	422:437	NO	(−12)	ST	BD35F	12/24V	186
CR 42	FRIDGE + FREEZER COMPARTMENT	37	5	14	380	525	455(I)	382:527	OPT	(−6)	ST	BD1.4F-VSD	12/24V	300
CR 42 EL	FRIDGE + FREEZER COMPARTMENT	37	5	14	380	525	455(II)	382:527	OPT	(−6)	ST	BD1.4F-VSD	12/24V	285
CR 42 INOX CLEAN TOUCH	FRIDGE + FREEZER COMPARTMENT	37	5	15	400	525	500	402:527	3 side FM SS(VII)	(−6)	ST	BD1.4F-VSD	12/24V	285
CR 49	FRIDGE + FREEZER COMPARTMENT	44	5	17	380	525	452(I)	382:527	OPT	(−6)	ST	BD35F	12/24V	278
CR 49 EL	FRIDGE + FREEZER COMPARTMENT	44	5	17	380	525	452(II)	382:527	OPT	(−6)	ST	BD35F	12/24V	265
CR 49 INOX CLEAN TOUCH	FRIDGE + FREEZER COMPARTMENT	44	5	18	400	525	500	402:527	3 side FM SS(VII)	(−6)	ST	BD35F	12/24V	265
CR 63 F	FREEZER	–	63	23	475	620	513(I)	477:622	OPT	(−18)	ST	BD35F	12/24V	440
CR 63 F INOX	FREEZER	–	63	25	494	623	552	496:625	3 side FM SS* (VII)	(−18)	ST	BD35F	12/24V	440
CR 65	FRIDGE + FREEZER COMPARTMENT	60	5	18	450	530	473(I)	452:532	OPT	(−6)	ST	BD35F	12/24V	288
CR 65 EL	FRIDGE + FREEZER COMPARTMENT	60	5	18	450	530	473(II)	452:532	OPT	(−6)	ST	BD35F	12/24V	275
CR 65 INOX CLEAN TOUCH	FRIDGE + FREEZER COMPARTMENT	60	5	19	470	530	520	472:532	3 side FM SS(VII)	(−6)	ST	BD35F	12/24V	275
CR 65 F	FREEZER	–	65	25	525	610	540(I)	527:612	NO	(−18)	ST	BD35F	12/24V	458
CR 65 F INOX	FREEZER	–	65	27	544	610	580	546:612	3 side FM SS(VII)	(−18)	ST	BD35F	12/24V	458
CR 85	FRIDGE + FREEZER COMPARTMENT	77	8	22	475	627	505(I)	477:629	OPT	(−6)	ST	BD35F	12/24V	386
CR 85 EL	FRIDGE + FREEZER COMPARTMENT	77	8	22	475	627	505(II)	477:629	OPT	(−6)	ST	BD35F	12/24V	368
CR 85 INOX CLEAN TOUCH	FRIDGE + FREEZER COMPARTMENT	77	8	24	495	627	550	497:629	3 side FM SS(VII)	(−6)	ST	BD35F	12/24V	368
CR 86	FRIDGE + FREEZER COMPARTMENT	76	10	22	380	850	495(I)	382:852	OPT	(−6)	ST	BD1.4F-VSD	12/24V	499
CR 90 F	FREEZER	–	90	26	525	750	515(I)	527:752	OPT	(−12)	ST	BD35F	12/24V	670
CR 90 F INOX CLEAN TOUCH	FREEZER	–	90	28	545	750	565	547:752	3 side FM SS(VII)	(−12)	ST	BD35F	12/24V	626
CR 100	FRIDGE + FREEZER COMPARTMENT	94	6	23	486	745	455(I)	488:747	OPT	(−6)	ST	BD35F	12/24V	400
CR 130	FRIDGE + FREEZER COMPARTMENT	122	8	27	525	750	510(I)	527:752	OPT	(−6)	ST	BD35F	12/24V	438
CR 130 EL	FRIDGE + FREEZER COMPARTMENT	122	8	27	525	750	510(II)	527:752	OPT	(−6)	ST	BD35F	12/24V	418
CR 130 INOX CLEAN TOUCH	FRIDGE + FREEZER COMPARTMENT	122	8	29	545	750	555	550:750	3 side FM SS(VII)	(−6)	ST	BD35F	12/24V	418
CR 130 INOX CLEAN TOUCH SPECIALE	FRIDGE + FREEZER COMPARTMENT	122	8	31	545	794	585	552:796	3 side FM SS(VII)	(−6)	ST	BD35F	12/24V	418
CR 130 DRINK	FRIDGE	130	–	27	527	750	520(I)	529:752	OPT	–	ST	BD35F	12/24V	400
CR 130 DRINK INOX	FRIDGE	130	–	32	544	750	560	546:752	3 side FM SS(VII)	–	ST	BD35F	12/24V	400
CR 160 DRINK INOX	FRIDGE	160	–	45	626	870	610	628:872	3 side FM SS(VII)	–	ST	BD50F	12/24V	512
CR 195 COMBI	FRIDGE & FREEZER	130	65	54	551	1347	565	553:1349	3 side FM(IX)	(−18)	ST	2 x BD35F	12/24V	840
CR 195 COMBI INOX	FRIDGE & FREEZER	130	65	54	544	1347	565	546:1349	3 side FM SS(VII)	(−18)	ST	2 x BD35F	12/24V	840
CR 200	FRIDGE & FREEZER	150	50	47	731	880	620	732:882	3 side FM SS(VII)	(−12)	ST	BD50F	12/24V	874
CR 200 INOX	FRIDGE & FREEZER	150	50	48	731	880	620	732:882	3 side FM SS(VII)	(−12)	ST	BD50F	12/24V	874
CR 220 COMBI INOX	FRIDGE & FREEZER	130	90	61	544	1545	560	546:1547	3 side FM SS(VII)	(−12)	ST	2 x BD35F	12/24V	1070
CR 225 SILV ER	FRIDGE & FREEZER	180	45	36	547	1444	486(IV)	549:1446	NO	(−18)	ST	BD50F	12/24V	630
CR 260 COMBI INOX	FRIDGE + FREEZER COMPARTMENT	244	16	64	544	1545	560	546:1547	3 side FM SS(VII)	(−6)	ST	2 x BD35F	12/24V	836
CR 280 SILV ER	FRIDGE & FREEZER	235	45	41	547	1700	486(IV)	549:1702	NO	(−18)	ST	BD50F	12/24V	680
CR 320 COMBI INOX	FRIDGE	320	–	84	628	1790	610	630:1792	3 side FM SS(VII)	–	ST	2 x BD50F	12/24V	1042
CR 320 COMBI INOX	FRIDGE & FREEZER	250	70	87	628	1790	610	630:1792	3 side FM SS(VII)	(−6)	ST	BD50F + BD80F	12/24V	1147
CR 320 COMBI INOX	FRIDGE & FREEZER	160	160	86	628	1790	610	630:1792	3 side FM SS(VII)	(−12)	ST	BD50F + BD80F	12/24V	1609
FL 115 EL	FRIDGE + FREEZER COMPARTMENT	83	32	29	525	797	495(II)	527:799	NO	(−6)	ST	BD35F	12/24V	257
DR 16	FRIDGE OR FREEZER	16		13	380	250	540	382:252	OPT	(−6)	ST	BD1.4F-FSD	12/24V	252
DR 30	FRIDGE	30	–	17	440	260	700	442:262	OPT	–	T	BD1.4F-FSD	12/24V	244
DR 42 INOX CLEAN TOUCH	FRIDGE + FREEZER COMPARTMENT	34	8	18	399	519	511	401:521	3 side FM SS(VII)	(−6)	ST	BD1.4F-VSD	12/24V	333
DR 49 INOX CLEAN TOUCH	FRIDGE + FREEZER COMPARTMENT	41	8	18	399	519	497	401:521	3 side FM SS(VII)	(−6)	ST	BD1.4F-VSD	12/24V	305
DR 49 CUSTOM	(der. INOX CLEAN TOUCH)	41	8	17	379	519	494	381:521	NO	(−6)	ST	BD1.4F-VSD	12/24V	305
DR 55 FROST FREE INOX	FREEZER	–	55	27	469	525	555	471:527	3 side FM SS(VII)	(−12)	N	BD35F	12/24V	741
DR 55 FROST FREE CUSTOM	FREEZER	–	55	25	457	525	560	459:527	NO	(−12)	N	BD35F	12/24V	741
DR 65 INOX CLEAN TOUCH	FRIDGE + FREEZER COMPARTMENT	54	11	21	470	525	520	474:529	3 side FM SS(VII)	(−6)	ST	BD1.4F-VSD	12/24V	324
DR 65 CUSTOM	(der. INOX CLEAN TOUCH)	54	11	19	452	525	525	456:529	NO	(−6)	ST	BD1.4F-VSD	12/24V	324
DR 65 FROST FREE INOX	FRIDGE	65	–	26	469	525	555	471:527	3 side FM SS(VII)	–	ST	BD35F	12/24V	310
DR 65 INOX FROST FREE DRINK	FRIDGE	65	–	27	469	525	555	471:527	4 side FM SS(I)	–	ST	BD35F	12/24V	310
DR 65 FROST FREE CUSTOM	FRIDGE	65	–	25	457	525	560	459:527	NO	–	ST	BD35F	12/24V	310
DR 70 INOX CLEAN TOUCH	FRIDGE	70	–	31	626	444	724	631:448	3 side FM SS(VII)	–	T	BD35F	12/24V	295
DR 70 CUSTOM	FRIDGE	70	–	29	611	444	726	615:448	NO	–	T	BD35F	12/24V	295
DR 70 INOX CLEAN TOUCH	FREEZER	–	70	32	627	444	724	631:448	3 side FM SS(VII)	(−12)	T	BD50F	12/24V	800
DR 70 CUSTOM	FREEZER	–	70	30	611	444	726	615:448	NO	(−12)	T	BD50F	12/24V	800
DR 70 INOX CLEAN TOUCH ver. 230V 50Hz	FREEZER + ICEMAKER	–	60	38	627	444	786	631:448	3 side FM SS(VII)	(−12)	T	TLES5.7FT.3	230V	1055
DR 70 INOX CLEAN TOUCH ver. 115V 60Hz	FREEZER + ICEMAKER	–	60	38	627	444	786	631:448	3 side FM SS(VII)	(−12)	T	TLS4.5F	115V	1380
DR 70 CUSTOM ver. 230V 50Hz	FREEZER + ICEMAKER	–	60	36	611	444	788	615:448	NO	(−12)	T	TLES5.7FT.3	230V	1055
DR 70 CUSTOM ver. 115V 60Hz	FREEZER + ICEMAKER	–	60	36	611	444	788	615:448	NO	(−12)	T	TLS4.5F	115V	1380
DR 85 INOX CLEAN TOUCH	FRIDGE + FREEZER COMPARTMENT	88	13	23	494	619	544	N/A	3 side FM SS(VII)	(−12)	T	BDN45F	12/24V	300
DR 85 CUSTOM	FRIDGE + FREEZER COMPARTMENT	88	13	N/A	N/A	N/A	N/A	–	NO	N/A	N/A	BDN45F	12/24V	300
DR 100 INOX CLEAN TOUCH	FRIDGE	100	–	32	546	501	778	550:505	3 side FM SS(I)	–	T	BD35F	12/24V	252
DR 100 CUSTOM	FRIDGE	100	–	30	529	501	779	533:505	3 side FM SS(VII)	–	T	BD35F	12/24V	252
DR 100 INOX CLEAN TOUCH	FREEZER	–	100	33	546	501	778	550:505	3 side FM SS(VII)	(−12)	T	BD50F	12/24V	503
DR 100 CUSTOM	FREEZER	–	100	31	529	501	779	533:505	3 side FM SS(VII)	(−12)	T	BD50F	12/24V	503
DR 100 INOX CLEAN TOUCH ver. 230V 50Hz	FREEZER + ICEMAKER	–	90	39	546	501	840	550:505	3 side FM SS(VII)	(−12)	T	TLES5.7FT.3	230V	790
DR 100 INOX CLEAN TOUCH ver. 115V 60Hz	FREEZER + ICEMAKER	–	90	39	546	501	840	550:505	3 side FM SS(VII)	(−12)	T	TLS4.5F	115V	1031
DR 100 CUSTOM ver. 230V 50Hz	FREEZER + ICEMAKER	–	90	39	529	501	841	533:505	3 side FM SS(VII)	(−12)	T	TLES5.7FT.3	230V	790
DR 100 CUSTOM ver. 115V 60Hz	FREEZER + ICEMAKER	–	90	39	529	501	841	533:505	3 side FM SS(VII)	(−12)	T	TLS4.5F	115V	1031
DR 105 INOX	FRIDGE	105	–	28	515	515	575+170*	519:517	NO	–	ST	BD35F	12/24V	480
DR 130 INOX CLEAN TOUCH	FRIDGE + FREEZER COMPARTMENT	124	14	27	544	744	551	N/A	3 side FM SS(VII)	N/A	N/A	BDN45F	12/24V	N/A
DR 130 CUSTOM	FRIDGE + FREEZER COMPARTMENT	124	14	N/A	N/A	N/A	N/A	N/A	NO	N/A	N/A	BDN45F	12/24V	N/A
DR 160 INOX	FRIDGE	160	–	43	627	865	610	632:870	3 side FM SS(VII)	–	ST	BD50F	12/24V	530
DR 160 CUSTOM	FRIDGE	160	–	41	613	868	622	617:872	NO	–	ST	BD50F	12/24V	530
DR 160 INOX	FREEZER	–	160	45	627	865	610	632:870	3 side FM SS(VII)	(−12)	ST	BD80F	12/24V	1097
DR 160 CUSTOM	FREEZER	–	160	43	613	868	622	617:872	NO	(−12)	ST	BD80F	12/24V	1097
DR 160 INOX	FRIDGE & FREEZER	90	70	46	627	865	610	632:870	3 side FM SS(VII)	(−6)	ST	BD80F	12/24V	635
DR 160 CUSTOM	FRIDGE & FREEZER	90	70	44	613	868	622	617:872	NO	(−6)	ST	BD80F	12/24V	635
DR 190 INOX	FRIDGE	190	–	56	900	800	545	905:805	3 side FM SS(VII)	–	ST	BD50F	12/24V	700
DR 190 CUSTOM	FRIDGE	190	–	53	898	798	551	902:802	NO	–	ST	BD50F	12/24V	700
BI 16	FRIDGE	16	-	12	384	557	240	384:242	NO	–	ST	BD1.4F-FSD	12/24V	155
BI 29 DUAL	FRIDGE OR FREEZER	29		12	342	326(I)	655	344:505	NO	(−6)	T	BD1.4F-AM	12/24V	175
BI 29 DUAL CUSTOM	FRIDGE OR FREEZER	29		11	342	326(VI)	655	344:505	NO	(−6)	T	BD1.4F-AM	12/24V	175
BI 30	FRIDGE	30	–	16	449	724	251	453:255	NO	–	T	BD1.4F-FSD	12/24V	254
BI 36	FRIDGE	36	–	14	438	676(III)	240	440:242	NO	–	T	BD1.4F-AM	12/24V	316
BI 40	FRIDGE	40	–	15	395	400(V)	560	405:405	NO	–	ST	BD35F	12/24V	270
BI 41 DUAL	FRIDGE OR FREEZER	41		14	342	612(VI)	500	502:344	NO	(−6)	ST	BD1.4F-AM	12/24V	222
BI 53 F	FREEZER	–	53	20	645	630	425	649:429	NO	(−18)	ST	BD50F	12/24V	260
BI 75	FRIDGE	75	–	23	645	630	425	649:429	NO	–	ST	BD35F	12/24V	340
BI 92 DUAL	FRIDGE OR FREEZER	92		31	801	615	480	805:484	NO	(−18)	ST	BD50F	12/24V	360
BI 172 DUAL	FRIDGE & FREEZER	130 (172 if only fridge)	38	38	980	840	493	984:497	NO	(−12)	ST	BD50F	12/24V	603
